Centre Structure
Building the Centre Structure | |

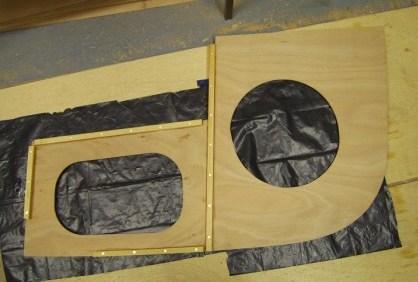

| The bow girder was fitted with fillets for the first plank, frame A, frame B and the top of the bow buoyancy tank. |  |

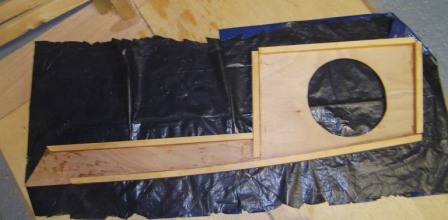

| The stern girder was fitted with fillets for the transom, frame D and the top of the stern buoyancy tank. |  |

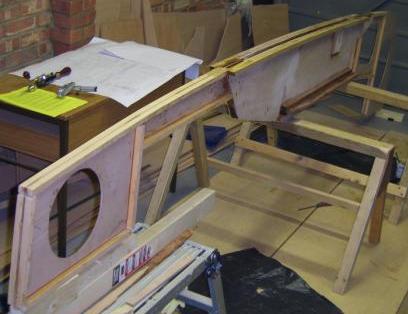

| Centre structure viewed from aft end. Before glueing the datum on the bow girder, stern girder and centerboard case was aligned by using a panel pin at each end and a thread stretched between them. Measurements were taken to check the position of each of the frames. |  |

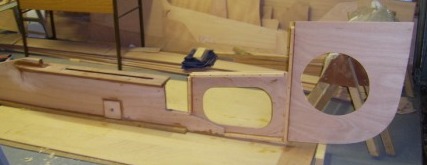

| Forward end of centre structure. |  |
